Enmane-Professional Industrial Grade CAT.7 Patch Cord, Game fever Cable

Details are introduced

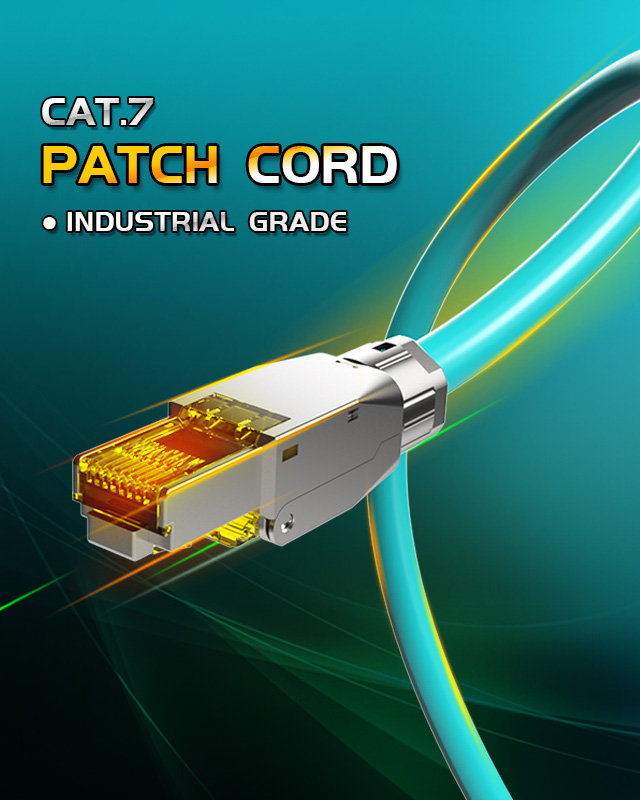

Enmane-Professional Industrial Grade CAT.7 Patch Cord, Game Fever Cable

Industrial Grade/10 Gigabits Transmission/Customized Length/Full Shielded

CAT.8 - CAT.7 - CAT.6A - CAT.6

Supports bandwidth up to 2GHz (2000MHz) and boosts the speed of data transmission up to 40Gbps

Crystal Head：Zinc alloy housing,tool-free crystal head
Metal Screw cap：Ensure the wire connection stable and reliable
IDC Terminal Base：Phosphor bronze contact teeth ensure the stable signal transmission
Ferrule：Full copper conductor,50U gold plated,stable contact,corrosion-resistant,anti-aging
Shielded：Multiple shielded
PCB Board：Built-in independent PCB board,anti-interference,stablilize network
Network cable：Shielded Twisted Pair(SFTP) can reduce the interference & signal attenuation
Upgrading feature：Thick copper wire,Stranded twisted pairs,New type 5G crystal head
Connector：Universal RJ45 sockets,8P8C

PCB Board: Excellent performance,High-speed transmission,Reliable signal

Built-in independent PCB board reduces NEXT (Near-End Crosstalk)
Patch Cord

IDC Terminal Base: Stable connection optimize signal transmission

Phosphor bronze contact teeth easy to cut the cable,and ensure the stable signal transmission
Patch Cord

Full copper conductor--Stable contact,corrosion-resistant,anti-aging

Flat shape with 50U gold plated coating prevent the coating falling
Patch Cord

No need to bend and easy to fix clip

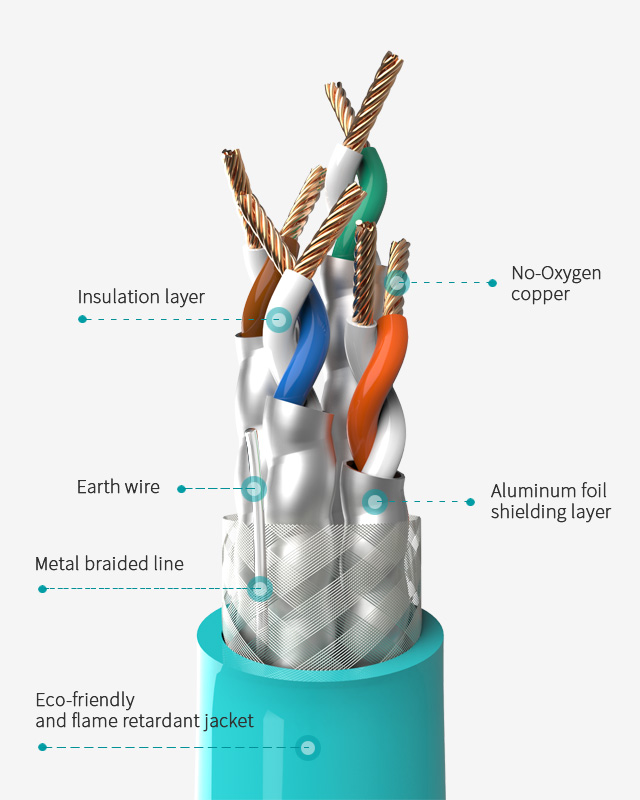

Wire ---Great resistance to crosstalk, noise, and interference.

8-core twisted wires Stranded Copper with shielding
Patch Cord

Technical parameters

Brand：ENMANE
Manufacturer：Enmane Group
Model：ksp7
Type：Patch cord
Connector：RJ45
Length：0.5m~10m/customized
Color：Black/yellow,green/orange,or customized
Jacket Material：PVC
Connector Material：Zinc alloy
Certification：FLUKE/3P Certificate
Standard：IEC60603 Standard
Temperature：-40°—80°,IP20 grade
Plug test： 30N,IEC standard
Load capacity：Structure strength 50N,no break and fall within 60 seconds
Test：Pass 360 degree rotory and swag instant break test,meet international standard
Highly Compatible：Supports 22 to 26 AWG solid or stranded cable wire with outside diameters between 5.0mm and 9.0mm
Applicable distance： Industry/Data center/Office/Buildings/ Vessel/Space/House
Certification：DELTA/ROHS/REACH
Warranty Period：12 months

Product Display

Professional R&D ability / Exquisite manufacturing process / Strict quality control
