Enmane-Network UTP Surface Mount Keystone Jack Box

    2020-09-05 Views: Source:Enman Group

High-impact ABS housing/Simple Installation/10 Gigabits Transmission

Tmall
Tmall purchase

Details are introduced

Enmane-Network UTP Surface Mount Keystone Jack Box

High-impact ABS housing/Simple Installation/10 Gigabits Transmission

CAT.6A - CAT.6 - CAT.5E

Keystone Jack Box


Design: U-shape corner & built-in screw
Housing:ABS plastic with UL 94V-0 safety rating
PCB Board:All-in-one Design,Anti-interference,Stablilize Network
IDC Terminal Base:Phosphor bronze contact teeth ensure the stable signal transmission.
Ferrule:Full copper with 50 gold plating make more stable contact
Double Wire Entry:Bottom entry or rear entry
Wire Gauge:22-26WAG


Ferrule-Patent No.:201822233731.7

Patented ferrule---Full copper with 50 gold plating

Keystone Jack Box


PCB Board

All-in-one Design,Anti-interference,Stablilize Network

Keystone Jack Box

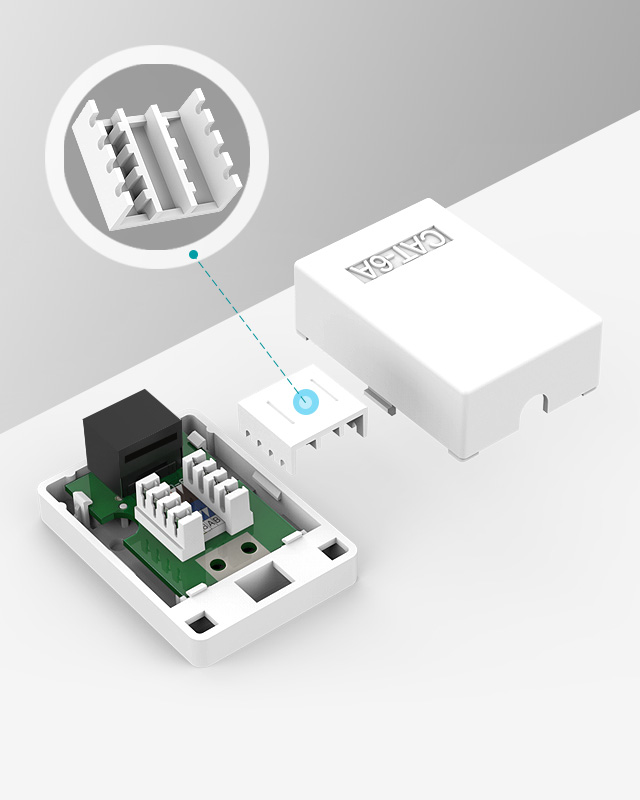

IDC Terminal Base

Phosphor bronze contact teeth ensure the stable signal transmission.

Keystone Jack Box


ABS Dustproof Shutter

Wire cover+dustproof shutter make dual protection for the connection

Keystone Jack Box

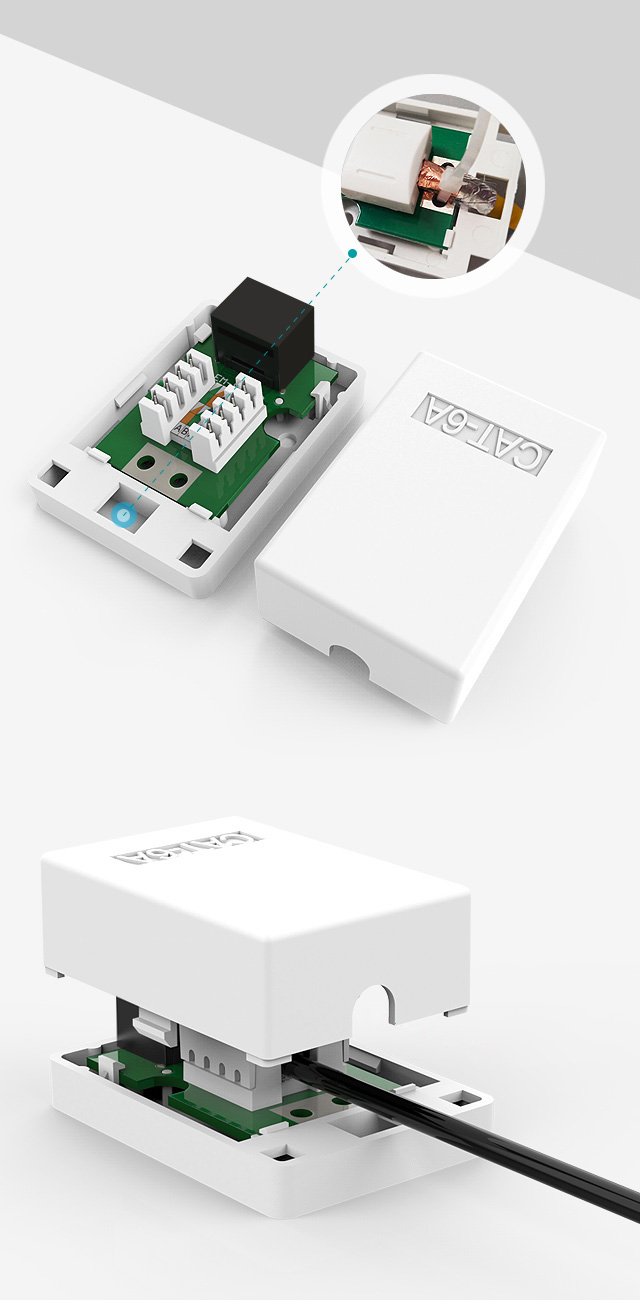

Double Wire Entry

Simply wire entry from bottom or rear of the surface box

Keystone Jack Box


Wire Bonding

T568A/T568B, meet international common standard & various of network cabling requirements.

Keystone Jack Box



Technical parameters


Brand:ENMANE
Manufacturer:Enmane Group
Model:KU870
Type:Network Surface Box
Specification:Single port/Dual ports
Connector:RJ45
RJ45: ≥800/times
IDC:≥300 times
Contact pin:Full copper with 50U gold-plated
Material:ABS
Color:White

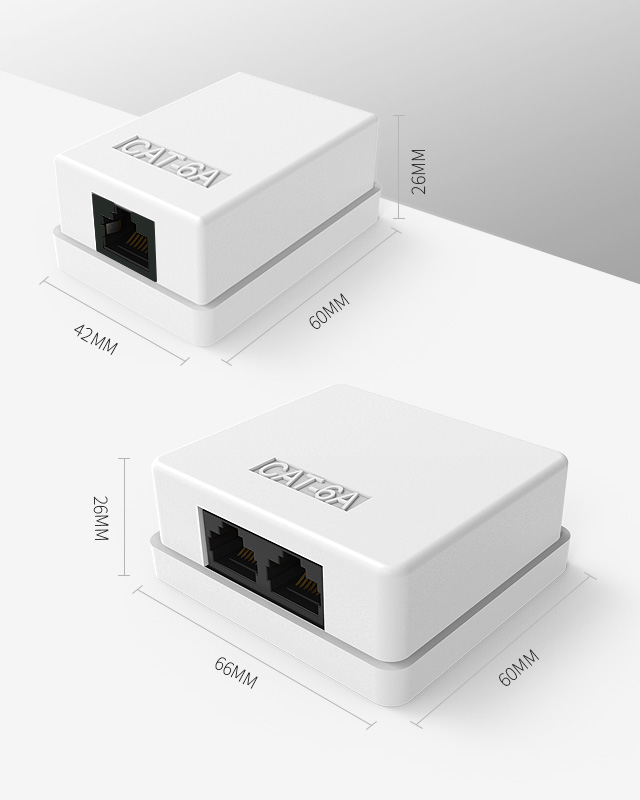

Dimension:Single Port:60*42*26 MM(The dimension is only for reference) Dual Port:60*66*26 MM(The dimension is only for reference)
Certification:FLUKE Certificate
Line sequence:568A/568B
Wire Bonding:90 degree wire bonding
Plug test:30N,IEC standard
Application: Compatible with any standard RJ45 sockets,Enmane's patch panels, surface boxes, or wall plates (face plates).
Applicable place:Industry/Data center/Office/Buildings/ Vessel/Space/House
Warranty Period:12 months

Keystone Jack Box

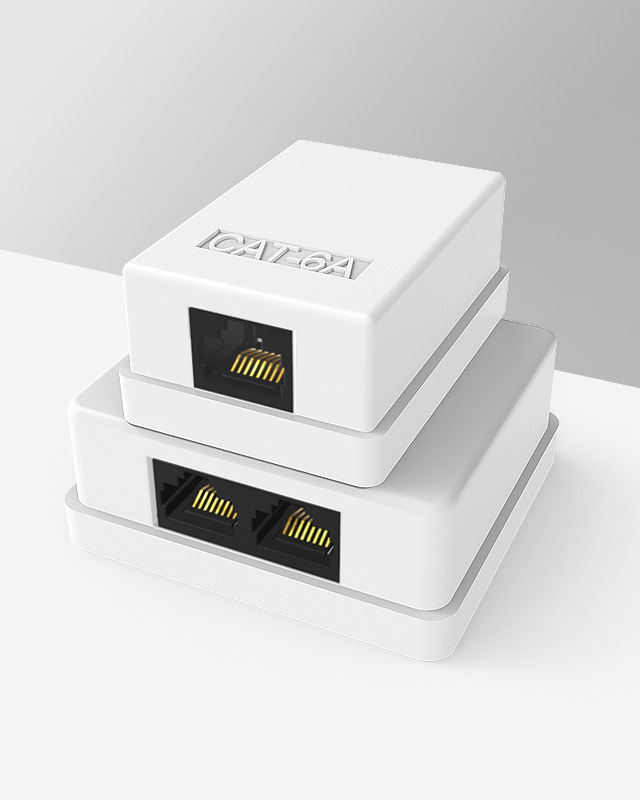

Product Display

Professional R&D ability / Exquisite manufacturing process / Strict quality control
